Viega Sanpress Inox G – reliable safety for your gas installation
-
Use
Long-term safety for gas applications in residential and commercial buildings. The dimensions 15 to 108 mm are rated for natural and liquid gas and are suitable for use with hydrogen (H2). In addition to this, the dimensions from 15 to 54 mm can be used for heating oil and diesel fuel applications.
-
Material
Long-term safety for gas applications in residential and commercial buildings. The dimensions 15 to 108 mm are rated for natural and liquid gas and are suitable for use with hydrogen (H2). In addition to this, the dimensions from 15 to 54 mm can be used for heating oil and diesel fuel applications.
Long-lasting quality made from high-grade stainless steel
Absolute safety is the top priority in gas installations. Viega Sanpress Inox G press connectors and pipes are made from the tried-and-tested material that is 1.4401 stainless steel, which is the key to ensuring both safety and speed. With their mechanical and thermal resistance, the yellow HNBR sealing elements contribute to the long-term resilience of your gas supply lines. Thanks to the cylindrical pipe guide, these are protected from damage during installation. And to stop you having to worry about inadvertently unpressed connections, the Viega Sanpress Inox G press connectors come with our DVGW certified SC-Contur feature. The result is a thoroughly safe gas installation.
-
Three reasons for using Sanpress Inox G for gas installations
- Complete stainless steel system consisting of press connectors, piping with transitions and numerous other components
- Perfectly matched system components for versatile applications
- Long-term safety for gas applications in residential and commercial buildings
Areas of application
Special features of the Sanpress Inox G system
DVGW certified and flexibly combinable
The components from the Viega Sanpress Inox G system meet the strict standards of the Technical Rules for Gas Installations (DVGW-TRGI 2018) and the ÖVGW-G-K guidelines, which are the most important technical rules for all experts working in the gas industry. With Viega Sanpress Inox G you can realise your entire building installation without having to compromise on flexibility, as it is fully combinable with the Profipress G gunmetal connections. This enables you to benefit from easy and cost-effective connections for your gas installation while ensuring it is safe.
Ready for any job – Viega Sanpress Inox G in industrial applications
Viega Sanpress Inox G really comes into its own in industrial applications where materials and technology are subject to extremely high demands. The robust stainless steel system, which was developed for heavy-duty use, truly excels when used in supply systems. The advantages start with assembly: thanks to the cold press connection technology, systems can even be installed in specially protected areas without any need for time-consuming welding work or additional fire protection measures. Sanpress Inox G will amaze you with its operational and long-term reliability and the minimal production downtime when installing it.
Advantages of press connection technology at a glance
Time savings
Using the pressing technique to connect piping reduces installation time significantly. Much less effort is required compared to conventional methods such as welding or soldering and it can even be used in hard-to-reach areas. The system elements can be joined together in less than 20 seconds, reducing assembly time by up to 80 %.
Reliability
With our stringent quality standards, high-quality materials and continuous innovations, we ensure reliable press connections. The Viega SC-Contur feature makes any inadvertently unpressed connections clearly visible. It is included in all press connectors and enables a centralised leakage test to be performed.
Cost efficiency
The perfect symbiosis of quality and economic efficiency. Viega press connection technology is the effective way to save time and money. Not only does it eliminate the special steps associated with processes such as welding or soldering, but the pressing method also makes the system less prone to faults and therefore more durable than the alternatives.
Safety
No flames or fumes are generated when pressing pipe connections and the process is absolutely fireproof. This reduces the risks posed by flying sparks or human error – a major advantage, especially in sensitive or hard-to-reach environments. It also minimises the need for special health and safety measures and permits.
The Sanpress Inox G assembly process – quick, clean and safe

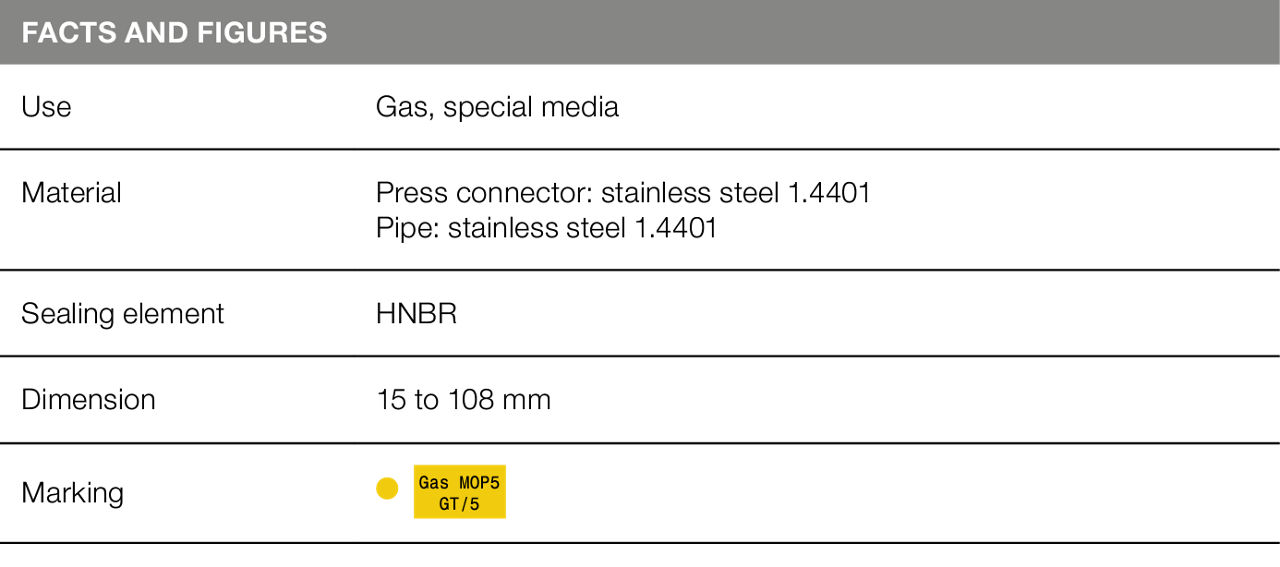

The Sanpress Inox G product range
The Viega Sanpress Inox G system offers a comprehensive product range for gas installations that meet the highest standards of quality and safety.
With over 800 different press connectors and system components made of high-quality 1.4401 stainless steel, this system provides a reliable and durable solution for a multitude of gas installation applications.
The product range offers a wide choice of sizes from 15 to 108 mm to cater for all sorts of different installation requirements.
Installing Sanpress Inox G is a safe and straightforward process thanks to the proven Viega pressing technology. All you need is a Viega Pressgun and the corresponding press jaws – tools that you are likely to have already. This simplifies the installation process considerably, saving you time and money.
You can find more detailed information about the Sanpress Inox G product range here:
Certificates
Sanpress Inox G has been certified by the following institutions:
