Viega Profipress G – exemplary safety in gas installations
Flexible use without any fire hazard
At Viega, we refuse to compromise on safety, particularly when it comes to gas installations. The tried-and-tested pressing technology allows complete installations to be realised quickly, efficiently and without any risk of fire. Viega Profipress G is certified for gas and liquid gas installations in accordance with the requirements of the DVGW (German Technical and Scientific Association for Gas and Water) and ÖVGW (Austrian Association for Gas and Water) and also for heating oil and diesel fuel pipes in accordance with the national technical approval granted by the DIBt (German Institute of Building Technology). The product range offers components in dimensions from 12 to 64 mm for fantastic flexibility as you implement your extensive gas installations from start to finish.
-
Three reasons for using Profipress G for gas installations
- Safe and reliable gas installation throughout the building, from the service connection right through to the gas boiler
- Tried and tested Profipress press connectors with HNBR sealing element designed specifically for gas
- Extensive range of special components and gas valves for maximum versatility
Areas of application
Special features of the Profipress G system
Sophisticated protection from the market leader in metal press connector systems
Viega Profipress G gives specialist tradesmen the peace of mind they need to get on with assembly. The tried-and-tested press connection technology allows installations to be completed quickly, efficiently and without any risk of fire. From the house lead-in point in the cellar to the gas boiler, Profipress G ensures safe installation together with flexible connection options. The Technical Rules for Gas Installations (TRGI) require active and passive measures to protect against tampering. As part of the Viega concept, the Viega gas flow monitor gives you active protection.
Press connectors for gas installations – safety and convenience combined
The Technical Rules for Gas Installations (TRGI) require active and passive measures to prevent interference by unauthorised persons. Press connectors cannot be undone once they have been pressed, making press connections highly tamper-proof. Thanks to the Viega SC-Contur, any unpressed points will leak when a centralised leakage test is performed, making them clearly identifiable. This saves valuable time when carrying out complex test procedures during installation. All Viega Profipress G parts are clearly distinguishable to the eye. The yellow dot on the bead, yellow rectangle, yellow sealing elements and yellow product bags mean there is virtually no risk of confusion at the construction site.
Sealing elements with enduring quality
The Profipress G HNBR sealing element has been specially tailored to the requirements of gas installations. It was developed to ensure durability and resistance to the gas medium it is intended to carry. Thanks to their low-temperature flexibility and thermal stability, our press connectors offer reliable performance. This is really important, as gas installations can be exposed to high temperature fluctuations, especially in direct sunlight.
Versatile components for safe gas installations
Offering great versatility, Viega gas meter ball valves and gas sockets are an essential component of any gas installation. The gas meter ball valves feature press connections and tamper protection, come with DVGW certifications and are available in versions for single and double-pipe gas meters. Gas meter ball valves with a gas flow monitor or thermal shut-off system (TSS) are optionally available. The gas sockets with TSS are ideal for appliances that are not tied to a specific location. These components ensure a safe and efficient gas supply but have also been designed with maintenance and control in mind. They enable a high degree of safety and convenience in all gas applications.
Advantages of press connection technology at a glance
Time savings
Using the pressing technique to connect piping reduces installation time significantly. Much less effort is required compared to conventional methods such as welding or soldering and it can even be used in hard-to-reach areas. The system elements can be joined together in less than 20 seconds, reducing assembly time by up to 80 %.
Reliability
With our stringent quality standards, high-quality materials and continuous innovations, we ensure reliable press connections. The Viega SC-Contur feature makes any inadvertently unpressed connections clearly visible. It is included in all press connectors and enables a centralised leakage test to be performed.
Cost efficiency
The perfect symbiosis of quality and economic efficiency. Viega press connection technology is the effective way to save time and money. Not only does it eliminate the special steps associated with processes such as welding or soldering, but the pressing method also makes the system less prone to faults and therefore more durable than the alternatives.
Safety
No flames or fumes are generated when pressing pipe connections and the process is absolutely fireproof. This reduces the risks posed by flying sparks or human error – a major advantage, especially in sensitive or hard-to-reach environments. It also minimises the need for special health and safety measures and permits.
The Profipress G assembly process – quick, clean and safe

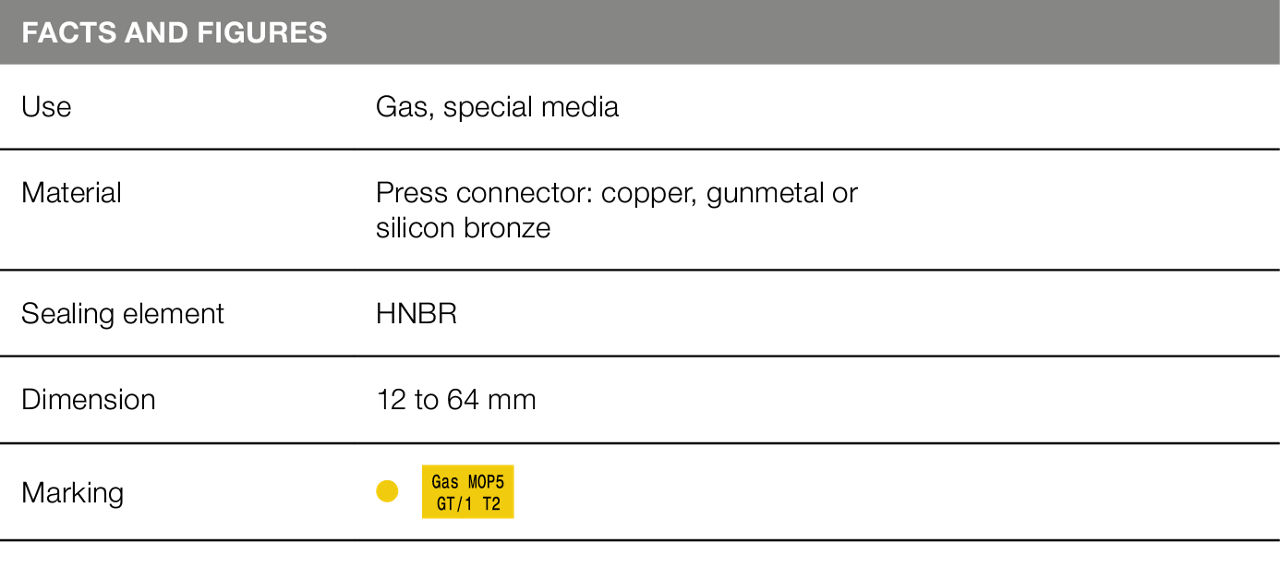

The Profipress G product range
Profipress G is synonymous with maximum safety and efficiency in gas installations. With its special HNBR sealing element, this system is ideal for use with technical gases, heating oil and diesel fuels.
It is available in sizes from 12 to 64 mm to cover a wide range of installation requirements.
Installing Profipress G is a safe and straightforward process thanks to the proven Viega pressing technology. All you need is a Viega Pressgun and the corresponding press jaws – tools that you are likely to have already. This simplifies the installation process considerably, saving you time and money.
You can find more detailed information about the Profipress G product range here:
Certificates
Profipress G has been certified by the following institutions:
